High Payload Cobot Palletizer
Increased capacity for automating the more ergonically challeging end-of-line positions with collaborative robots.

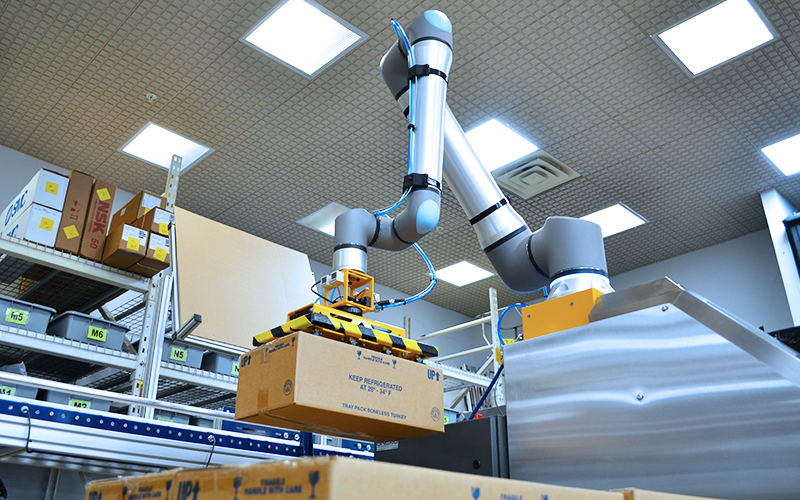

Palletizing with the UR20
The PalletizUR Is Not a Kit. Designed by cobot integration experts, the PalletizUR is a turn-key collaborative palletizing system.
- High payload - handle case weights up to 50 lbs.
- Minimal footprint - no caging or guarding needed
- Quick deployment - requires a 110v outlet and an air line
- Portable - built-in fork pockets within the welded base
- Multi-pallet reach - stack pallets on either side of the cobot
UR30 Collaborative Palletizer
Industry leading 30-35kg payload. The newest cobot from Universal Robots increases the capacity of the PalletizUR without expanding the footprint.
- Higher capacity - Payloads up to 60lbs
- Vertical reach - Stack pallets over 96 inches in height
- Heavy-duty capability - Ideal for palletizing heavy boxes, buckets, trays, and totes
Collaborative Rated
- Third party verified to meet the industry standards for collaborative system safety
- Plug-and-play area scanners with customizable safety zones
Custom Grippers
- Light-weight, 3D printed design
- Optional multi-pick functionality
- Quick disconnect air lines and slide on tool changer
Line Integration
- Custom infeed conveyors and case nesting systems
- Multi-system configurations with diverters and reject stations

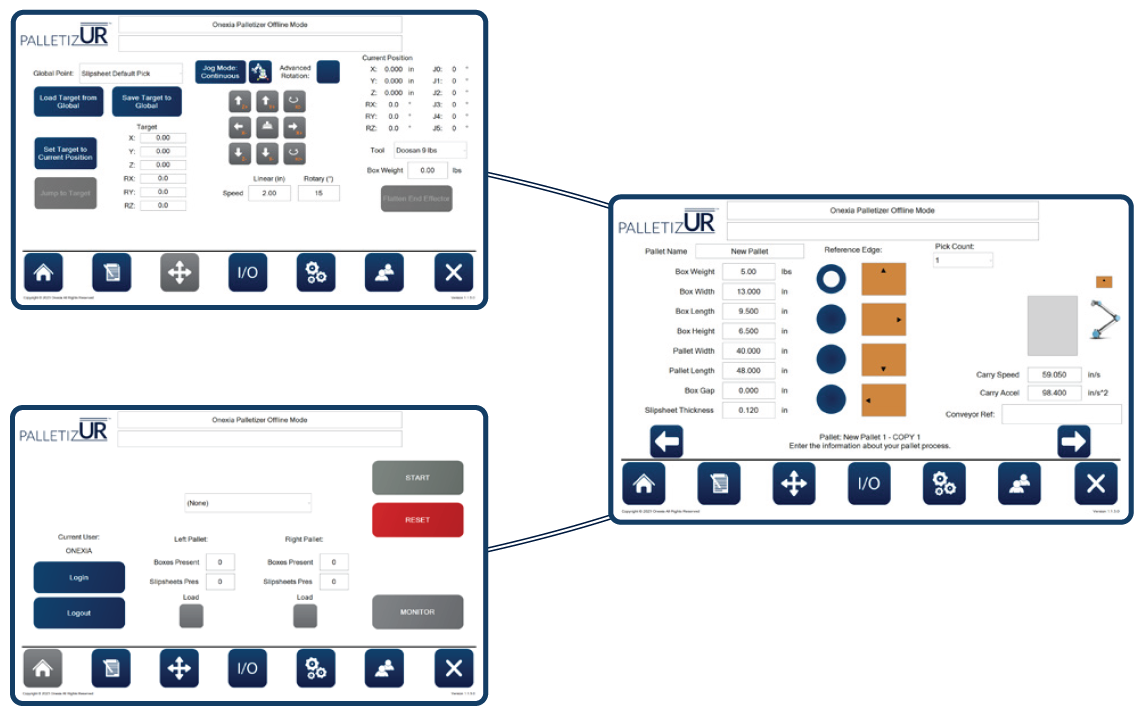

Cobot Palletizing Software
Never write a line of code. Build and save custom pallet configurations without writing a line of code using ONExia’s drag-and-drop cobot palletizing software.
- Simple interface - designed for non-technical end users
- Pallet library - build, edit, save, and recall hundreds of configurations
- Administrative controls - varying levels of system access
- Dual mode - tend two separate lines with one PalletizUR
Customize Pallets
- Create any layer configuration
- Orient shipping labels
- Add slip sheet between layers
Data Communication
- Signal AGVs to remove pallets
- Monitor system output in real time
- Interact with inventory software
System Functionality
- Operated through a touchscreen
- Adjustable safety scanner zones
- Built-in conveyor controls

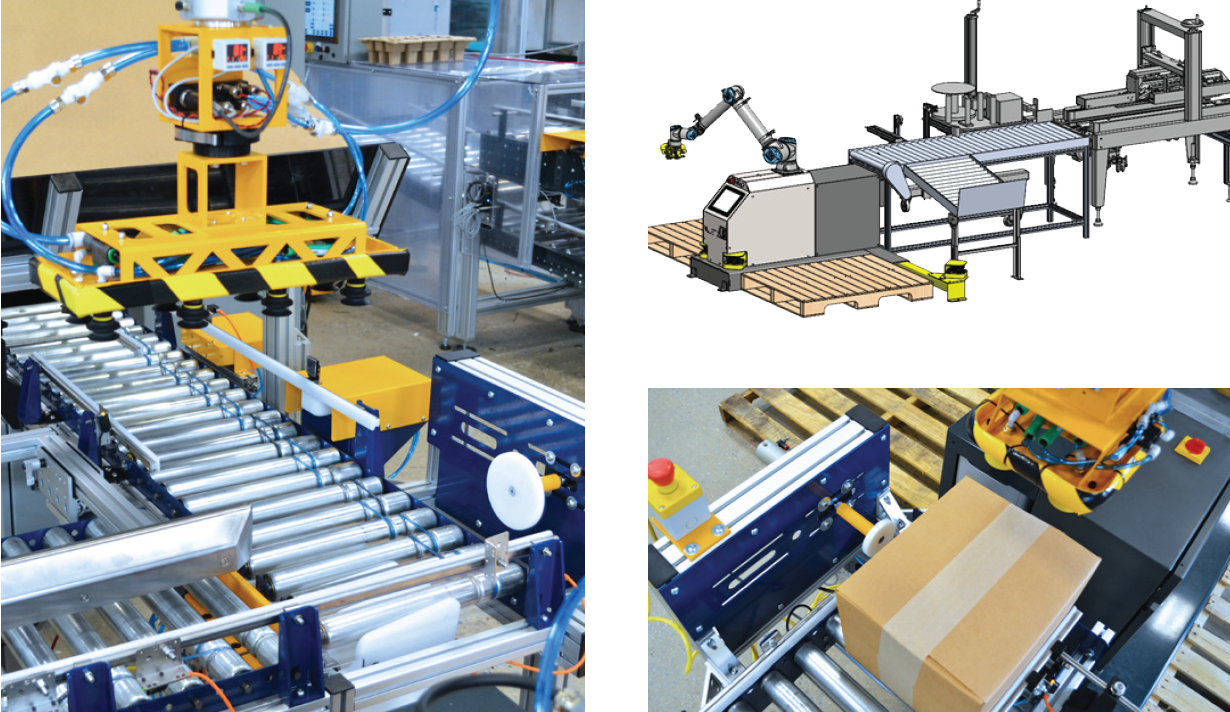

Custom Conveyor Solutions
The perfect pallet starts with a perfect pick. Designed to integrate with existing line configurations, ONExia's infeed conveyors orient incoming product to maximize the PalletizUR's output.
- Conveyor controls - toggle nesting positions and zones from the palletizer software
- Flexible design - hand adjustable guide rails for simplified line changeover
- Product orientation - fully integrated solutions for positioning side or bottom packed cases for palletizing
